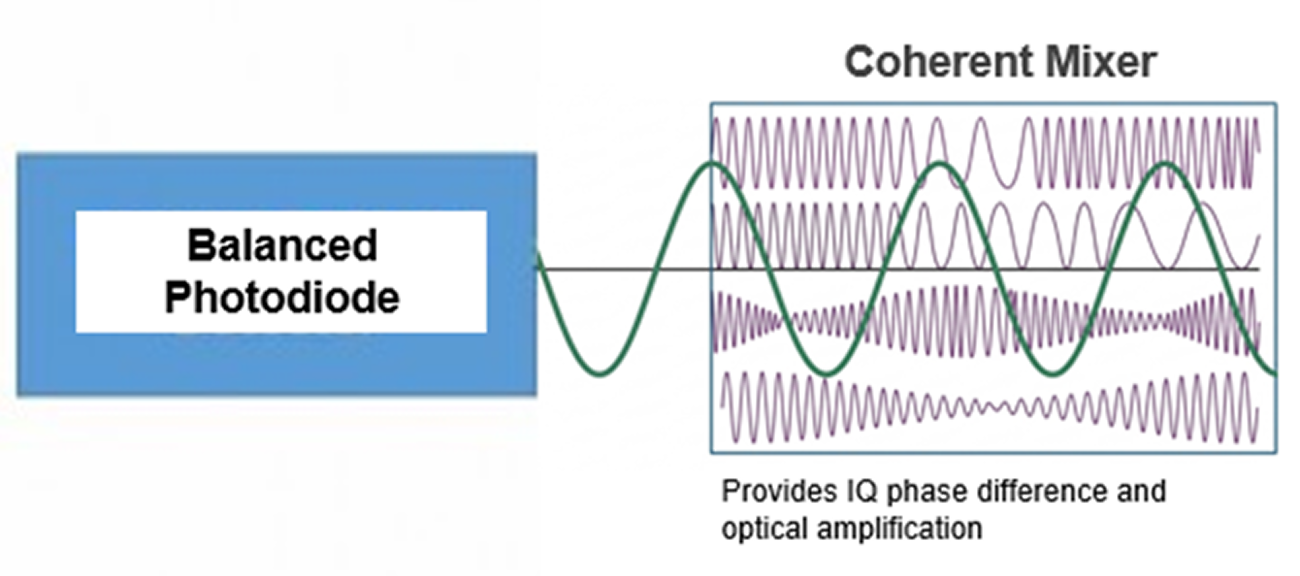

실리카(SiO2) 기반 광간섭계
Silica (SiO₂)-Based Optical Coherent Detector
결맞음(Coherent) 검출기술을 적용하여, 태양광 및 여러 광 소스에 영향을 받지 않습니다. (광간섭 저감)
By applying optical coherent detection technology, it is unaffected by sunlight and other light sources (optical interference suppression).

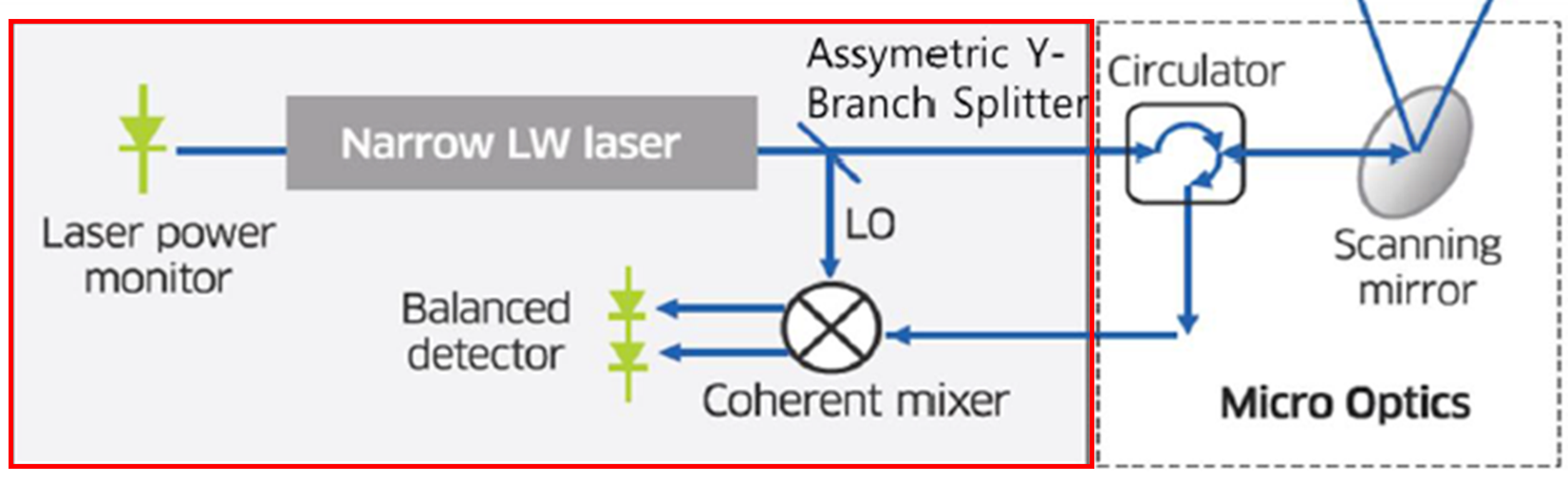

Optical Engine 구조
Optical Engine Architecture

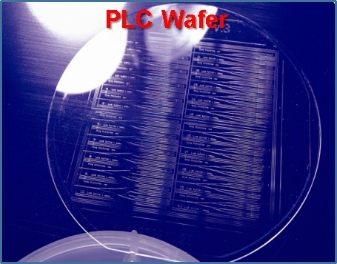

SiO2 (실리카포토닉스) vs Si (실리콘 포토닉스) 기술 비교
SiO₂ (Silica Photonics) vs Si (Silicon Photonics) Technology Comparison
| 비교 항목 | 실리카 포토닉스 (SiO2) | 실리콘 포토닉스 (Si) |
|---|---|---|
| 핵심 소재 | 실리카 / 유리 기반 (SiO2) | 실리콘 (Si) |
| 굴절률 | 낮음 (1.44) — 저산란·저손실 특성 | 높음 (3.4) — 고집적 설계 유리 |
| 도파 손실 | 0.01 ~ 0.1 dB/cm | 0.5 ~ 2 dB/cm |
| 위상 잡음 | 매우 작음 — 위상 안정성 우수 | 상대적으로 큼 |
| 온도 안정성 | 열광학 계수 작음 — 안정 | 열광학 계수 큼 — 민감 |
| 간섭계 성능 | 정밀 간섭계에 최적 | 장거리/저노이즈 한계 |
| 레이저 집적성 | 하이브리드 결합 필요 | CMOS 호환 — 통합 용이 |
| Coupling Loss | 0.1~0.3 dB (구조 단순) | 5~10 dB (구조 복잡) |
| Noise | 낮음 (정밀 센싱 유리) | 상대적으로 높음 |
| 소형화 | 충분한 소형화 가능 | 초소형 가능 |
| 비용 / 공정 |
초기 비용 매우 낮음 (5~10억), 고객 대응이 매우 빠름 |
초기 비용 매우 높음 (100억+), 공정 안정화 시 대량·저비용 생산 가능 |
| 신뢰성 | 높음 — 산업·방산용 적합 | 열·환경 영향 |
| 적합 분야 | 정밀·산업·방산용 LiDAR | 통신, 소비자용, 저가형 LiDAR |
| Comparison Item | Silica Photonics (SiO₂) | Silicon Photonics (Si) |
|---|---|---|
| Core Material | Silica / Glass-based (SiO₂) | Silicon (Si) |
| Refractive Index | Low (1.44) — Low scattering & loss | High (3.4) — Favorable for high-density design |
| Waveguide Loss | 0.01 ~ 0.1 dB/cm | 0.5 ~ 2 dB/cm |
| Phase Noise | Very low — Excellent phase stability | Relatively high |
| Temperature Stability | Low thermo-optic coefficient — Stable | High thermo-optic coefficient — Sensitive |
| Interferometer Performance | Optimal for precision interferometry | Limited for long-range / low-noise |
| Laser Integration | Hybrid bonding required | CMOS-compatible — Easy integration |
| Coupling Loss | 0.1~0.3 dB (Simple structure) | 5~10 dB (Complex structure) |
| Noise | Low (Favorable for precision sensing) | Relatively high |
| Miniaturization | Sufficient miniaturization achievable | Ultra-miniaturization possible |
| Cost / Process |
Very low initial cost (KRW 0.5–1B); Very fast customer response |
Very high initial cost (KRW 10B+); Low-cost mass production possible once process is stabilized |
| Reliability | High — Suitable for industrial & defense | Affected by heat & environment |
| Suitable Applications | Precision / Industrial / Defense LiDAR | Telecom, Consumer, Low-cost LiDAR |
LiMAX 핵심기술 3
LiMAX Core Technology 3
1. 실리카 도파로 기반 Coherent Detector로 초정밀·저손실 광신호 검출 실현
실리카(SiO2) 소재 특유의 극소 저손실 광전송과 우수한 온도 안정성을 바탕으로, 간섭계 성능을 극대화하여 장거리에서도 흐트러짐 없는 고정밀 데이터를 확보합니다.
외부 환경 변화에도 신호의 위상을 안정적으로 유지함으로써 잡음(Noise)은 줄이고 신호(Signal)는 극대화하여, 산업 및 방산 분야에서 요구하는 최상의 신뢰성을 제공합니다.
2. 고속 신호처리를 지원하는 광반도체 기반 다채널 아키텍처로 실시간 데이터 분석 강화
광반도체 기술을 활용한 고도의 병렬 신호 처리 구조를 통해 대용량의 광데이터를 병목 현상 없이 실시간으로 처리합니다. 확장이 용이한 스케일러블(Scalable) 아키텍처 설계를 적용하여 자율주행 및 로봇 제어 시스템에서 필수적인 고속 응답성을 보장하며, 복잡한 환경에서도 끊김 없는 인지 성능을 구현합니다.
3. LD Integrated Coherent Detector 기반의 Optical Engine
LD 일체형 Coherent Detector 기반 Optical Engine으로 시스템 소형화 및 효율성 극대화를 위해 레이저 광원(LD)과 검출기를 COB(Chip On Board) 기술을 이용하여 통합한 고집적 구조를 통해 광학 정렬의 정밀도를 높이고 시스템 구성을 획기적으로 단순화했습니다.
1. Achieving Ultra-Precision, Low-Loss Optical Signal Detection with a Silica Waveguide-Based Coherent Detector
Leveraging the ultra-low-loss optical transmission and excellent temperature stability inherent to silica (SiO₂) material, it maximizes interferometer performance to acquire high-precision data without distortion even at long distances.
2. Enhanced Real-Time Data Analysis with Photonic Semiconductor-Based Multi-Channel Architecture Supporting High-Speed Signal Processing
Through an advanced parallel signal processing structure utilizing photonic semiconductor technology, it processes large volumes of optical data in real time without bottlenecks.
3. LD-Integrated Optical Coherent Engine
To achieve system miniaturization and efficiency maximization, the laser diode (LD) and Coherent detector are integrated using COB (Chip On Board) technology. This highly integrated structure enhances optical alignment precision and dramatically simplifies system configuration.
